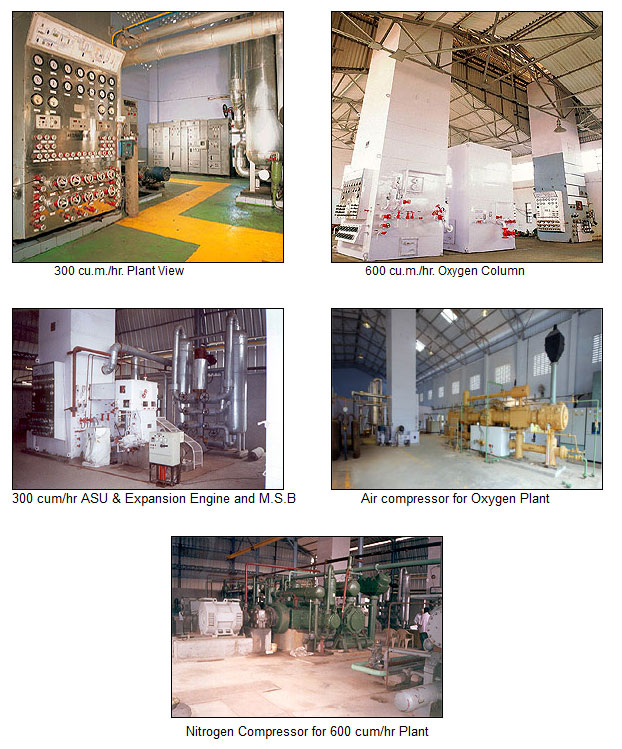

The SANGHI-ORG Nitrogen Plant, is safe and economical to operate. It comes with an efficient expansion engine, which lowers the operating pressures remarkably to as low as 32-35 kg/cm2 and also cuts down power consumption. A Molecular sieve Battery drier unit for separation of moisture and carbon dioxide is another money-saving device in the SANGHI-ORG plant. It removes acetylene and other hydro-carbons from the process air, thus eliminating the need for separate acetylene absorbers, and moreover it eliminates recurring caustic soda costs. The SANGHI-ORG Nitrogen Plant is capable of simultaneously producing high purity nitrogen Gas. It also has internal compression Liquid nitrogen Pump to fill dry gaseous oxygen in cylinders. We also undertake supervision of Installation and Commissioning of the SANGHI-ORG Nitrogen Plant. About 100 CU.M./Hr of Nitrogen will be used for regeneration of driers for SANGHI-ORG 80. * About 150 CU.M./Hr of Nitrogen will be used for regeneration of driers for SANGHI-ORG 100. * About 300 CU.M./Hr of Nitrogen will be used for regeneration of driers for SANGHI-ORG 200. The above product capacities are based on ambient conditions of 15oC temperature 760mm of Hg pressure and 50% relative humidity and 0.03% of Carbon Di-oxide is allowed as impurity. Note: 1) High purity Nitrogen of upto 2 PPM can also be tapped simultaneously with a separate liquid Nitrogen pump in modified plants , at an additional cost. 2) Provisions can also be made for tapping upto 25% liquid oxygen / liquid nitrogen simultaneously with gaseous oxygen, at an additional cost. Note : 1) Electric motors can be supplied to suit specific power ratings in respective countries across the globe, if informed in advance. 2) Specifications of other capacity plants upto 750 Cu.m/hr capacity can be furnished on request.
